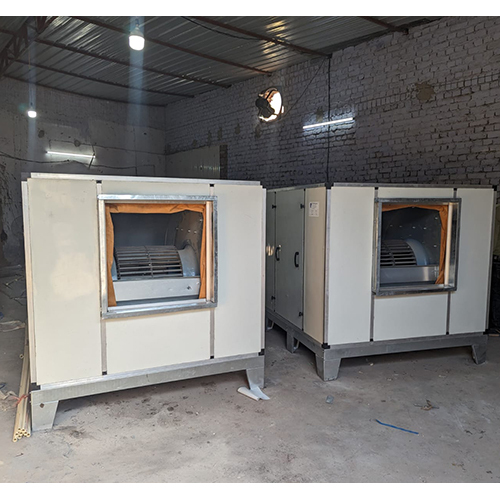

Air Washer

Get a Price/Quote

MOQ : 1 Unit

Air Washer Specification

Noise Level
Below 65 dB

Dust %
Up to 98%

Ventilation
Axial Fan

Color
Blue and Grey

Connectivity Type
Standalone Unit

Filtration Property
Wet Filtration

Material
Mild Steel Sheet, Powder Coated

Application
Industrial Air Cooling & Humidification

Energy Consumption
Low Power Consumption

Frequency
50 Hz

Flow Rate
5000 CFM

Maintenance Type
Low Maintenance

Humidity %
60-90%

Output
Air with controlled humidity

Pressure Range
5-30 mmWG

Filters
Cellulose/ Synthetic Pads

Efficiency (%)
Up to 95%

Control System
Electrical Panel

Installation Type
Floor Mounted

Dust
Industrial Dust, Pollutants

Features
Rust-resistant, Easy Access Pan for Cleaning

Hole Size
Customizable

Automatic Grade
Automatic

Capacity
5000 m3/hr

Power
1.5 HP

Voltage
415 V

Dimension (L*W*H)
1200 x 1200 x 1500 mm

Weight
140 kg

Warranty
1 year

Operating Temperature Range
5C - 55C

Water Distribution System
Even Spray Nozzle Network

Caster Wheels
Optional

Fan Motor Type
TEFC, Energy Efficient

Inlet/Outlet Duct Size
Customized as per requirement

Number of Stages
Single Stage

Make-up Water Connection
1/2 inch BSP

Drain Valve Size
25 mm

Pad Thickness
100 mm

Equipment Type
Air Washer Unit

Frame Finish
Powder Coated for Corrosion Resistance

Air Washer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Air Washer

An air washer is a 2-in-1 HVAC device that cleans and humidifies indoor air by passing it through water-saturated surfaces or sprays. It removes pollutants like dust, pollen, and smoke while adding moisture to dry environments, making it ideal for both residential and industrial applications, especially in arid climates.

Key Features and Description:

Working Principle: Utilizes natural evaporative coolingsimilar to a rainstorm washing the airby blowing, air through wetted pads or water sprays to trap particles and lower temperatures by

.
Components: Typically includes an air intake, dust filters (often washable 10-micron media), water mist nozzles or discs, a water sump/tank, and a blower/fan.
Dual Functionality: Serves as both a humidifier for dry spaces and an air purifier for improving air quality.
Industrial vs. Domestic: Industrial models are large, robust units often used in factories and commercial settings for cooling, while domestic models are generally smaller stand-alone units.
Advantages: Energy-efficient alternative to conventional air conditioning, offers high-efficiency filtration, and runs at low noise levels.
Maintenance: Requires regular cleaning of the water tank and filters to prevent bacterial growth and scale buildup

Superior Air Filtration and Cooling

Employing wet filtration and advanced spray nozzle network, this air washer efficiently removes up to 98% of industrial dust and pollutants. The result is clean, humidified air-crucial for maintaining healthy working conditions and supporting sensitive manufacturing processes where air quality matters most.

Durable, Energy-Efficient Design

Constructed with mild steel and finished with rust-resistant powder coating, the unit is built for longevity in tough environments. Its TEFC fan motor ensures energy efficiency and reliability, while low power consumption helps minimize operational costs, contributing to a sustainable workspace.

User-Friendly Maintenance and Operation

Equipped with features such as an easy access pan for periodic cleaning and an automatic electrical control panel, the air washer offers a hassle-free ownership experience. Optional caster wheels and customizable duct sizes allow for flexible installation to meet unique facility layouts.

FAQ's of Air Washer:

Q: How does the air washer efficiently remove dust and pollutants from industrial environments?

A: The air washer employs an even spray nozzle network that distributes water uniformly over 100 mm thick filtration pads, capturing up to 98% of airborne industrial dust and contaminants through wet filtration. This process ensures clean and humidified air output, making it ideal for manufacturing and processing facilities.

Q: What type of maintenance is required, and how easy is it to access internal components?

A: Maintenance is straightforward due to the unit's easy access cleaning pan and powder-coated surface, which resists rust and buildup. Its simple floor-mounted design allows convenient access, and the electrical control panel offers automated system management. Routine checks mainly involve pad cleaning or replacement and water system inspection.

Q: When should I use this air washer, and under what temperature conditions does it operate best?

A: This air washer is suitable for use in industrial settings requiring both cooling and humidity control, particularly where dust removal is critical. It performs efficiently within an operating temperature range of 5C to 55C, making it adaptable to varied climatic conditions throughout the year.

Q: Where can the air washer unit be installed, and is the ventilation configuration customizable?

A: The unit is floor-mounted and designed for installation in various industrial locations, such as workshops, factories, or process halls. Both the inlet and outlet duct sizes, as well as the hole size, are customizable to fit specific site requirements. Optional caster wheels are available for added mobility.

Q: What are the benefits of using a powder-coated, mild steel construction for the air washer?

A: Powder-coated mild steel provides outstanding durability and corrosion resistance, which is crucial for longevity in demanding environments. This construction also facilitates easier cleaning, helping to maintain hygiene and reduce long-term maintenance costs.

Q: How energy efficient is this air washer, and what are its power requirements?

A: The air washer features an energy-efficient TEFC fan motor operating at 1.5 HP, with an overall low power consumption suitable for continuous industrial use. It runs on a three-phase 415 V power supply at 50 Hz, delivering up to 95% operational efficiency with minimal noise levels below 65 dB.
